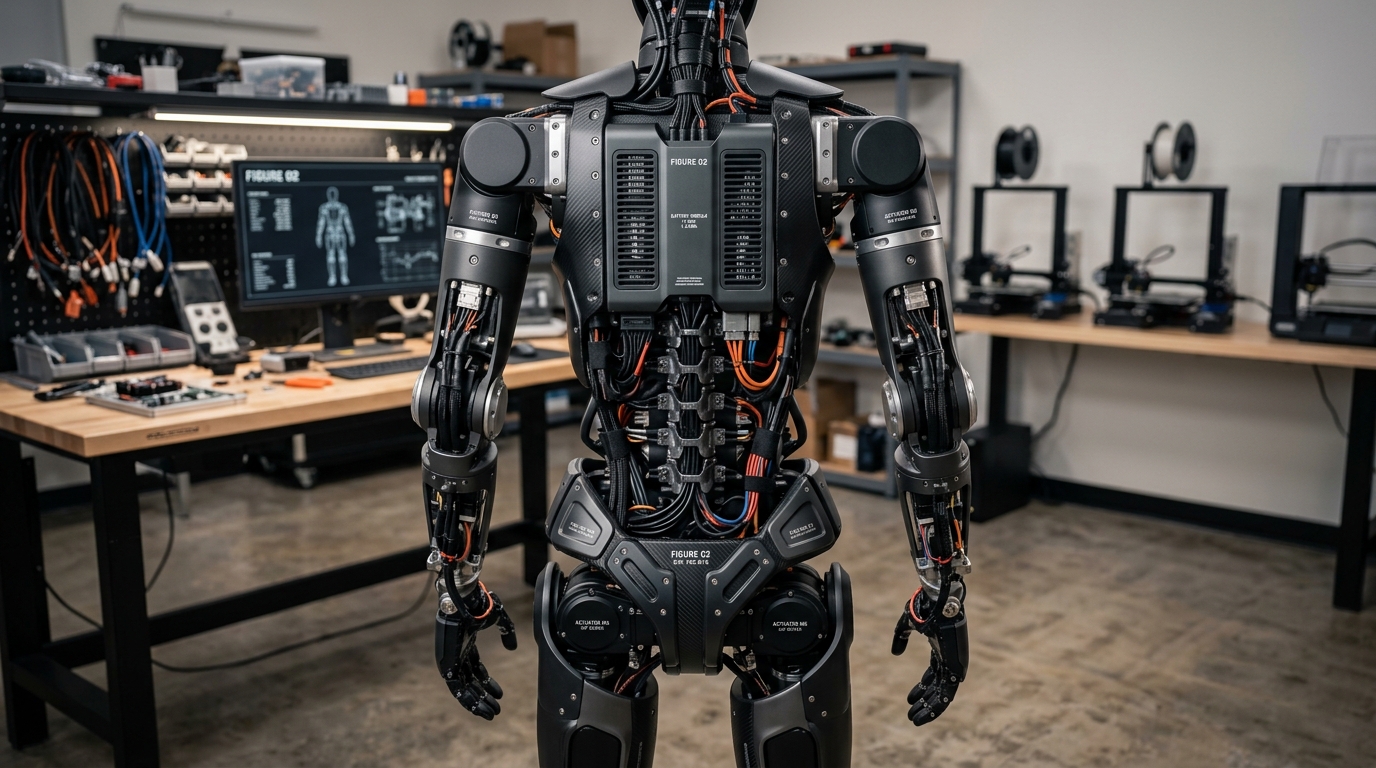

Figure 02 Full Profile

Matte black carbon-fiber chassis engineered for heavy industrial deployment.

OFFICIAL GALLERY ASSETSSELECT ANGLE TO INSPECT

Figure AI // Commercial Production V2Tier-1 Industrial Deployment

Figure 02

Industrial-scale commercial humanoid built for rigorous automotive manufacturing and high-throughput warehouse logistics.

Automotive Assembly Grade

CAPEX PURCHASE$140,000USD

RAAS SUBSCRIPTION$4,200/month

DEPOSIT:$10,000

LEAD TIME:16 WEEKS

WARRANTY:36 MO

VISIT OFFICIAL FIGURE AI STORE→

CALCULATE 5-YR ROI

&check;Official Partner Linkage & Direct Store Routing

As an independent registry and reselling partner, MRFL connects you directly to verified manufacturer queues and authorized regional deployment depots.

DEGREES OF FREEDOM41 TOTALHands: 16 | Arms: 14

AI INFERENCE800 TOPS2000 Hz Loop

BATTERY & RUNTIME5.5 HOURS2250 Wh Battery

MAX PAYLOAD25 kgExtended: 8 kg

HOUSEHOLD PERFORMANCE VERIFICATION

Domestic Household Chores Benchmark for Figure 02

SCORED ON EMPIRICAL FIELD TELEMETRY (1 TO 5 SCALE)

Delicate Dishwashing3/5 RATING

Industrial rack loading and commercial kitchen sanitizing dishwasher operation.

•Wine Glass Safety: NOT RECOMMENDED

Laundry Folding3/5 RATING

Commercial towel and industrial uniform folding.

Vacuuming and Mopping4/5 RATING

Commercial warehouse floor scrubbers and large area vacuuming.

Lawn Care and Garden1/5 RATING

Factory floor focus, smooth surface navigation preferred.

All-Weather Certified: INDOOR ONLY

Meal Prep Assistance1/5 RATING

Industrial parts sorting focus rather than delicate food preparation.

Stair Ascent with Groceries25 KG LIMIT

Heavy commercial carton stair traversal.

FULL HARDWARE SPECIFICATION

Kinematics, Actuators, AI Compute and Safety Architecture

01 // KINEMATICS

Height:168 cm

Weight:70 kg

Max Walk Speed:1.2 m/s

Total DOF:41

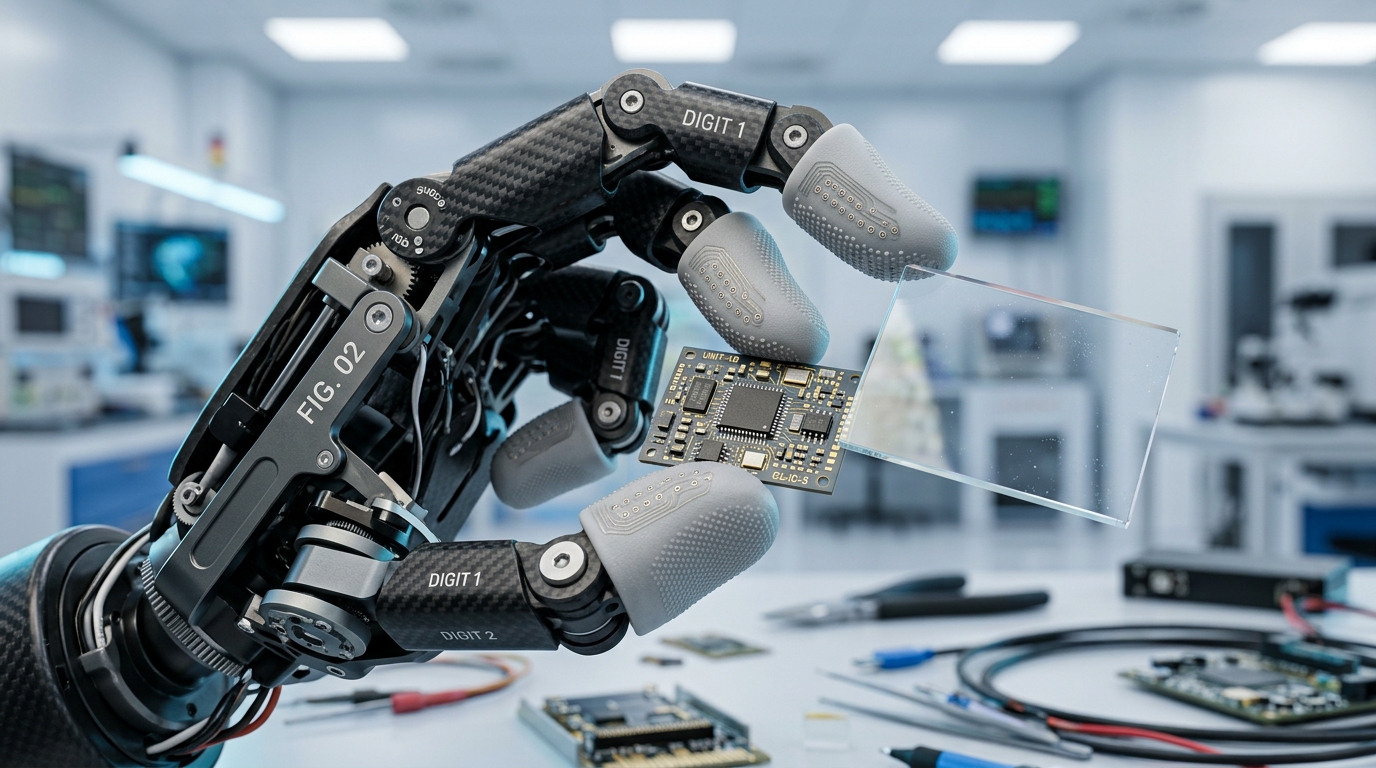

Hand Articulation:16 DOF

Arm Articulation:14 DOF

02 // ACTUATION

Actuator Type:Bespoke high-flux brushless motors mated to zero-lash harmonic strain wave drives

Peak Joint Torque:280 Nm

Gear Reduction:Strain wave transmission with dual absolute optical encoders

Cooling Architecture:Liquid-cooled internal spine loop with phase-change heat pipes

03 // AI COMPUTE

Main Processor:Custom Multi-SoC AI Blade featuring 3x NVIDIA RTX Embedded Modules

Inference Power:800 TOPS

Control Loop:2000 Hz

Operating System:Proprietary Real-Time Microkernel with ROS 2 Jazzy interop

04 // POWER & SAFETY

Battery Chemistry:Structural Li-Ion automotive pack integrated into torso chassis

Pack Capacity:2250 Wh

Recharge Time:80 min

Docking Mode:Autonomous Contactless Pad

Emergency Stop:Industrial category 4 stop architecture with dual channel monitored safety gate interlock

ORIGINAL EQUIPMENT MANUFACTURER

Figure AI

Headquarters: Sunnyvale, California

AUTHORIZED DEPOTS8 FACILITIES

WARRANTY TERM24-36 MONTHS

Autonomous automotive manufacturing and heavy logistics workforce automation. Comprehensive global warranty policy: 36-Month Enterprise SLA with 24/7 Field Engineering Replacement Guarantee
